$2,798.00

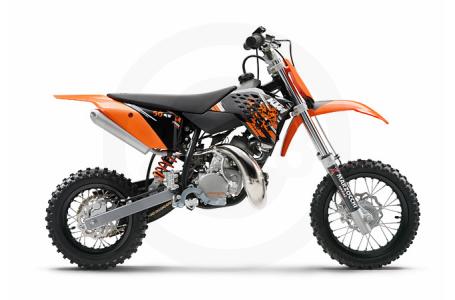

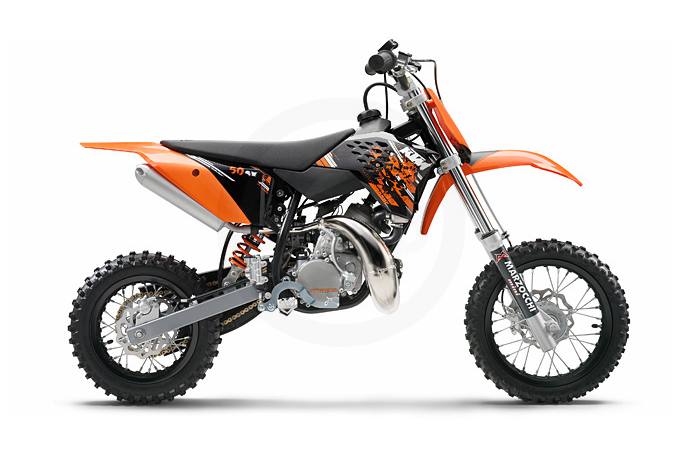

2008 KTM 50 SX Junior

08 KTM Sale

Now until March 3, 2011
$900.00 Off Store Price
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Only the best power, performance and appearance are good enough for first place: the KTM 50 SX Junior – a winner for every ace from the ages of six to nine. The seat height is adjustable from 650 mm upwards, with long suspension travel, disk brakes at the front and rear, a chain guard, as well as the best power output available in this class.


And getting off it? Yeah okay, but only when the tank is empty.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Carburetor: Dell'Orto PHVA 14 DS
    • Engine lubrication: Mixture lubrication 1:60
    • Transmission lubrication: ATF
    • Primary drive: 16:57
    • Final drive: 11:48
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra analogue
    Chassis
    • Frame: Central double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi Ø 32 mm (1.26")
    • Rear suspension: WP monoshock
    • Suspension travel front / rear: 140 / 205 mm (5.51" / 8.07")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Drum brake Ø 90 mm (3.54")
    • Rims, front / rear: 1.6 x 10"; 1.6 x 10" Aluminium
    • Tires, front / rear: 2.50 x 10"; 2.75 x 10"
    • Chain: 1/2 x 3/16" 96 R
    • Main silencer: Aluminium
    • Steering head angle: 66°
    • Wheel base: 910 mm (35.83")
    • Ground clearance (unloaded): 220 mm (8.66")
    • Seat height: 585 / 610 mm (adjustable) (23.03 / 24.02")
    • Fuel capacity: approx. 1.8 liters (0.48 gal)
    • Weight (no fuel): approx. 37.6 kg (82.89 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid
    Fuel System Dell'Orto PHVA 14 DS
    Ignition Seletra analog
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 82.89 lbs (37.6 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 35.83 in. (910 mm)
    Ground Clearance Unloaded: 8.66 in. (220 mm)
    Seat Height Adjustable: 23.03 / 24.02 in. (585 / 610 mm)
    Transmission
    Transmission Primary drive: 16:57; Clutch: Centrifugal clutch (adjustable)
    Final Drive 11:40

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 50 SX Junior
    Style Youth
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 82.89 lbs (37.6 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 35.83 in. (910 mm)
    Ground Clearance Unloaded: 8.66 in. (220 mm)
    Seat Height Adjustable: 23.03 / 24.02 in. (585 / 610 mm)
    Trail
    Rake
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid
    Compression Ratio
    Fuel System DellOrto PHVA 14 DS
    Ignition Seletra analog
    General
    Colors
    Warranty
    Transmission
    Transmission Primary drive: 16:57; Clutch: Centrifugal clutch (adjustable)
    Final Drive 11:40
